ODOR CONTROL

Sun Coast has privately developed chemical-free odor-elimination equipment for small and large applications.


The Oda-Killa destroys H2S and foul odor-causing compounds by injecting high-concentration Ozone (O3) gas into the ventilation air stream.


The variable speed-induced draft ventilation system controls the amount of foul air passing through the system. Exhaust gas sensors provide feedback to the control system to ensure the optimum amount of O3 and ventilation rate is produced.

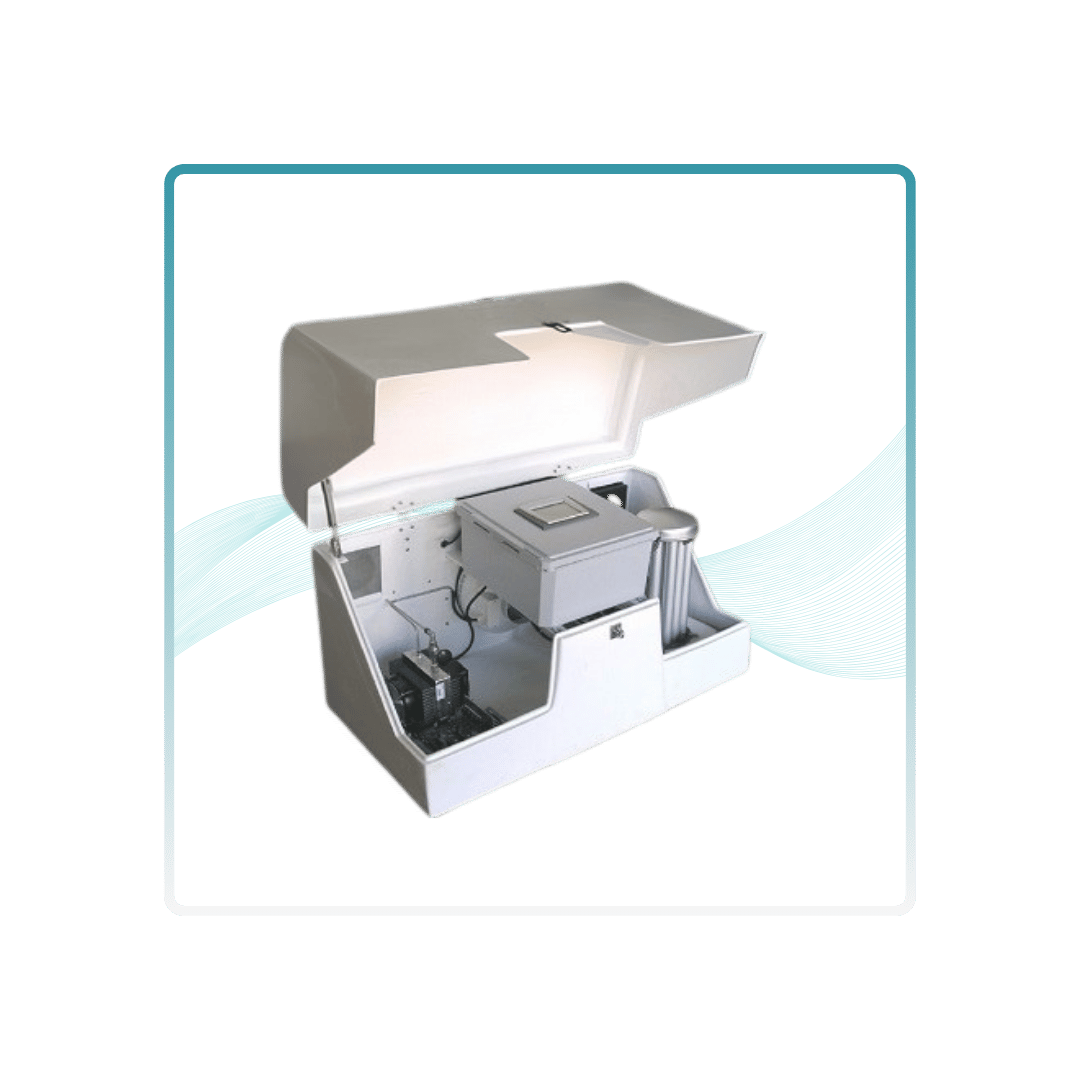

  • A white box with the lid open and a small device inside of it

    Slide title

    Write your caption here
    Button

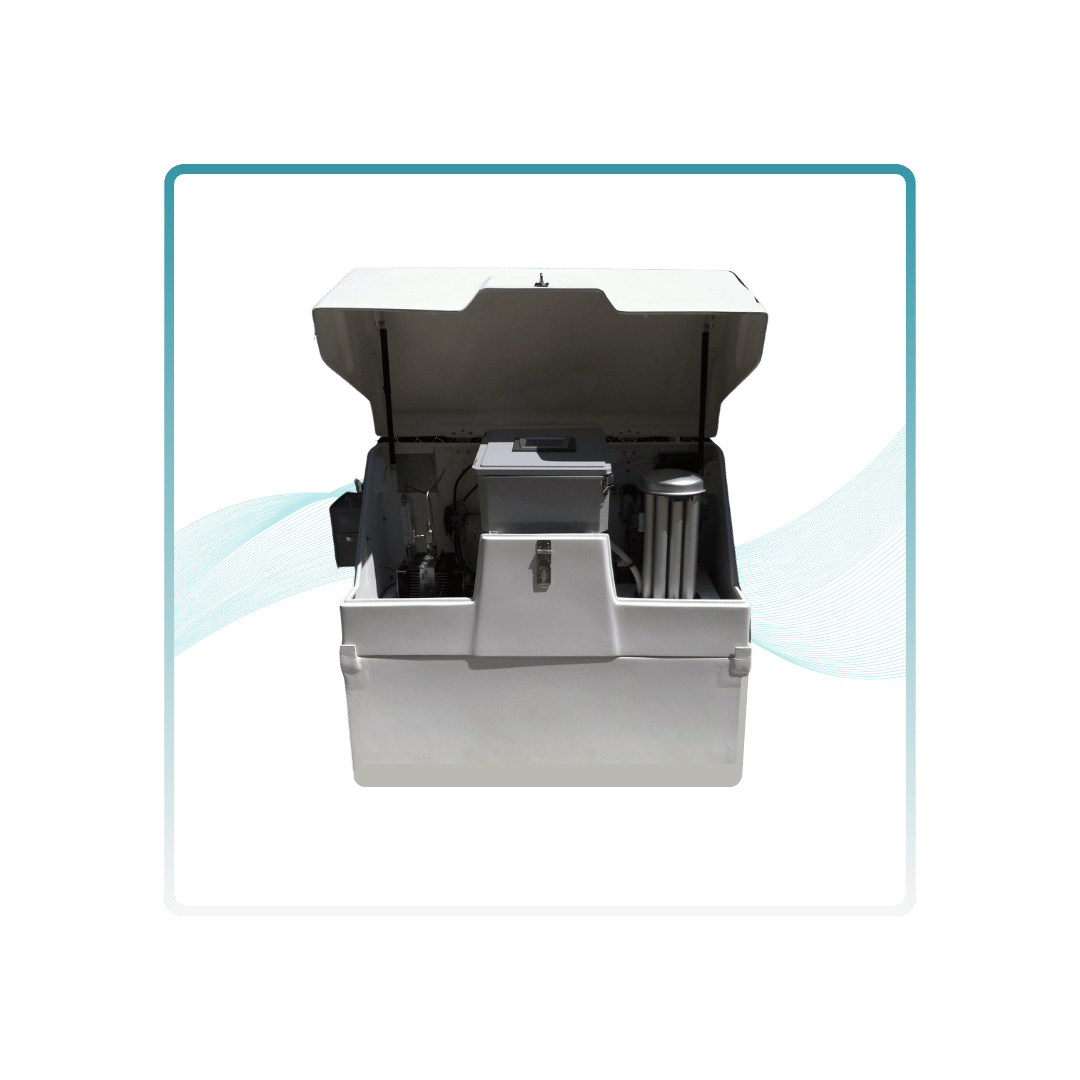

  • A white box with the lid open is sitting on a white surface.

    Slide title

    Write your caption here
    Button

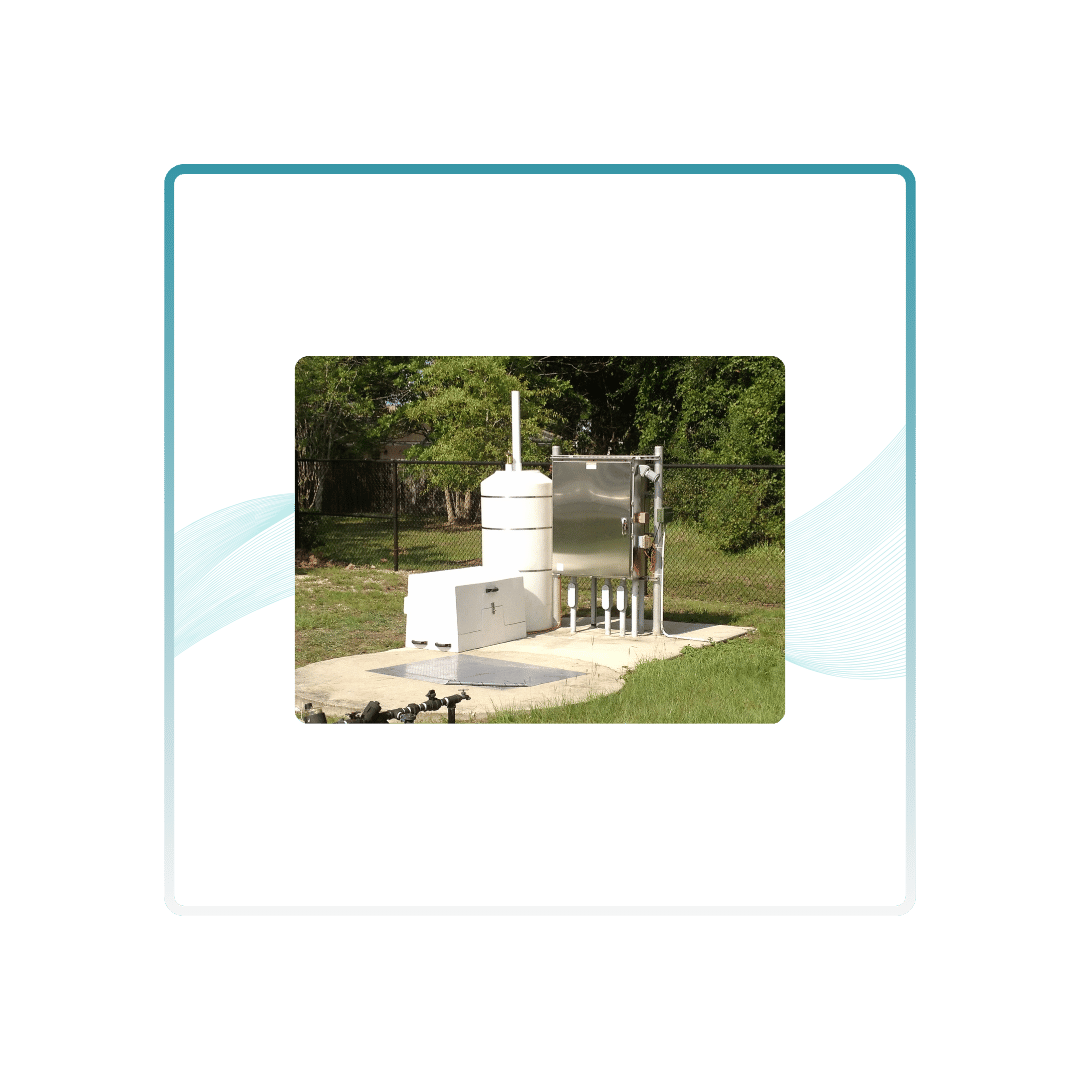

  • A picture of a water treatment plant in a field.

    Slide title

    Write your caption here
    Button

STANDARD FEATURES
& SPECS:

  • One year warranty
  • Control panel built to UL 508A standards
  • Incoming power surge arrestor
  • Electrical requirements - 15A max at 120VAC
  • Weatherproof low-profile enclosure
  • Manual control of O₃ generation
  • On-site odor analysis
  • On-site system start-up and training
  • All components are permanently labeled with scratch-resistant labeling
  • Each control panel is thoroughly tested before shipment

BENEFITS:

  • Reduced wet well corrosion
  • Very low power requirements
  • No reoccurring chemical cost or storage
  • Quiet operation
  • Easy install and low maintenance


OPTIONAL FEATURES:

  • Configuration for 208—480VAC applications
  • Remote monitoring via SCADA
  • Intrinsically safe process sensor circuit
  • Auxiliary status and alarm contacts
  • LCD Color touch screen for monitoring system status, Historical trending, Historical alarm log, and selection of Auto/Manual control
  • Automatic closed-loop control
  • Extended warranty and lease programs available
  • Stainless Steel or Aluminum enclosures
