HYDRAULIC POWER UNIT

Sun Coast’s HPUs are designed for your most critical & consistent applications.


Built for durability and efficiency,  Sun Coast’s Hydraulic Power Unit (HPU) is an essential solution for hydraulic applications where consistent hydraulic performance is key.


An HPU is a complete, self-contained system designed to generate and control hydraulic power for a wide range of machinery and equipment.

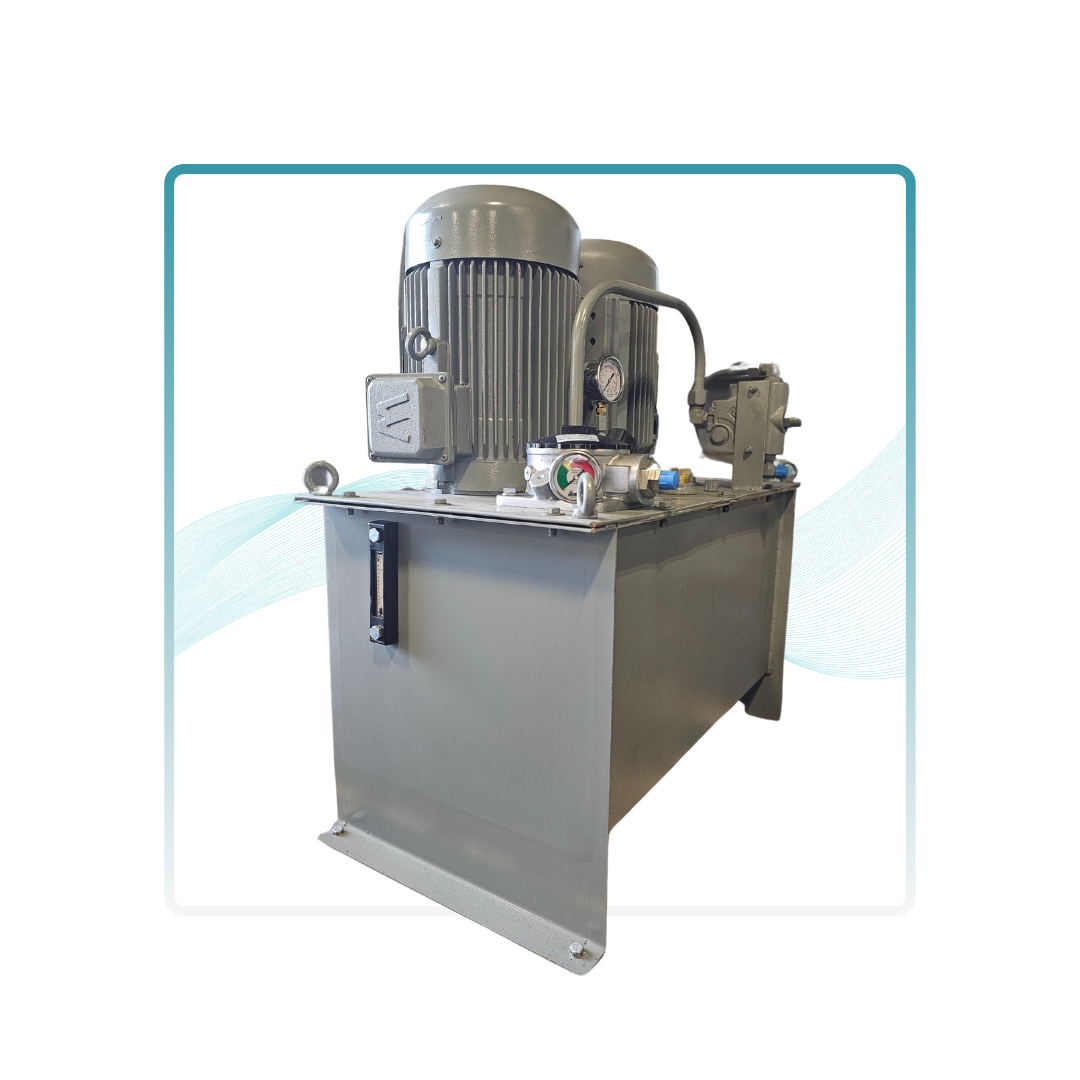

  • A hydraulic pump with two motors attached to it on a white background.

    Slide title

    Write your caption here
    Button
  • A hydraulic pump with a motor on top of it.

    Slide title

    Write your caption here
    Button

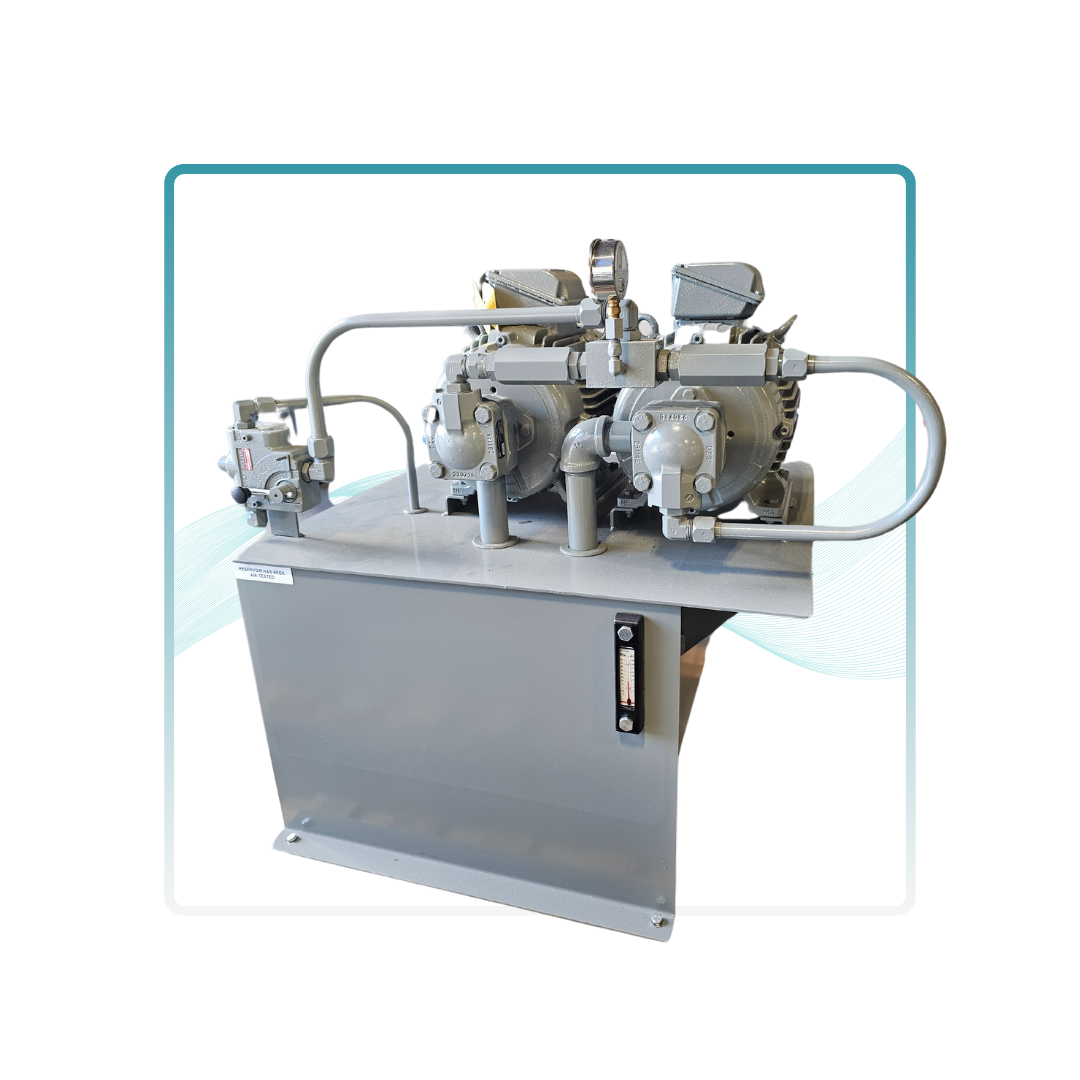

  • A machine with a lot of pipes attached to it.

    Slide title

    Write your caption here
    Button

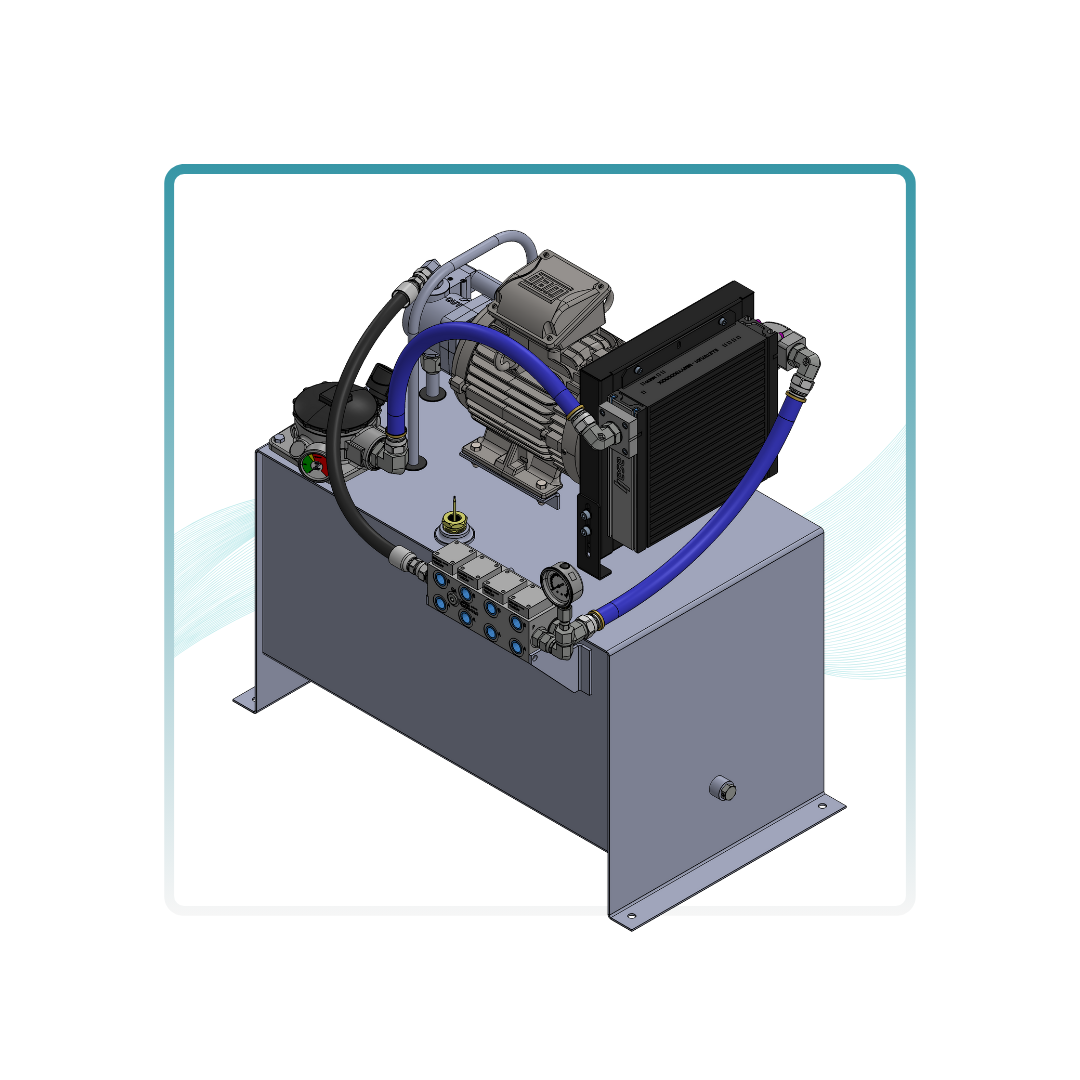

  • A hydraulic pump with a motor and hose attached to it.

    Slide title

    Write your caption here
    Button

Sun Coast’s HPUs are designed for your most critical & consistent applications.


Built for durability and efficiency,  Sun Coast’s Hydraulic Power Unit (HPU) is an essential solution for hydraulic applications where consistent hydraulic performance is key.


An HPU is a complete, self-contained system designed to generate and control hydraulic power for a wide range of machinery and equipment.

  • A hydraulic pump with two motors attached to it on a white background.

    Slide title

    Write your caption here
    Button
  • A hydraulic pump with a motor on top of it.

    Slide title

    Write your caption here
    Button
  • A machine with a lot of pipes attached to it.

    Slide title

    Write your caption here
    Button
  • A hydraulic pump with a motor and hose attached to it.

    Slide title

    Write your caption here
    Button

STANDARD:

  • Flow between 1  to 30 gpm
  • Horsepower up to 50 HP
  • w/ Valve manifold options


ALL HPUs
come complete with:

  • Sight glass &  temperature gauge
  • Pressure gauge
  • Low-level switch
  • Return line filter
  • System relief


PUMP OPTIONS:

  • Gear pump
  • Vane pump
  • Piston Pump

VALVES:

  • DO3 & DO5 selections offered
  • Sub-stack/Sandwich valves
  • Blanking plates available


MOTOR STARTER
PACKAGES:

  • 208VAC, 230VAC, or 460VAC
  • User-specified option available


MONITORING
& DIAGNOSTICS

  • Global Watch
  • Sensors
  • User-specified option available

OPTIONAL:

  • Pre-specified heat exchanger based on configuration
  • Level/Temp switch
  • Drain valve
  • Tank heater


CUSTOMIZABLE:

  • Engineered services available
  • Larger flows & HP options
  • Integrated components, controls, and feedback
  • A pump or valve from a manufacturer in your distribution
  • Your choice of paint color for larger quantities


A person is typing on a laptop computer.
A person is typing on a laptop computer.

FEATURES:

  • Wide flow rate (1 to 30gpm)

  • This flexibility allows for the unit to be tailored to various applications, from low-flow, precision tasks to high-demand operations requiring significant hydraulic force.

  • Large Reservoir Capacity (up to 80 gallons)

  • With reservoir capacities of up to 85 gallons, Sun Coast’s power unit offers ample fluid storage for extended operations. The larger reservoirs also enhance heat dissipation, ensuring reliable performance even during prolonged use.

  • High-efficiency electric motor

  • Our power unit features a dependable, energy-efficient electric motor engineered to provide consistent power while reducing energy consumption. Each motor is carefully selected to meet specific hydraulic demands, ensuring optimal performance for both light-duty and heavy-duty applications.

  • Integrated filtration system

  • Our hydraulic power unit is equipped with an integrated filtration system to ensure clean fluid circulation, safeguarding components from contamination and wear. The filter element is designed for easy replacement and maintenance, extending the service life of the entire hydraulic system.

  • Compact and modular design

  • With its large flow and reservoir capacity, our hydraulic power unit is still designed for seamless integration into existing systems. Its modular design enables quick installation, easy maintenance, and adaptability, even in tight or crowded work environments.

  • Durable and reliable

  • Constructed with high-quality materials and robust engineering, our hydraulic power unit is designed to endure harsh industrial environments. It ensures long-lasting performance while minimizing downtime and maintenance costs.

  • Industry-leading configurator

  • Minimal customer inputs required. Once entered the configurator will quickly provide you with a model number and pricing
